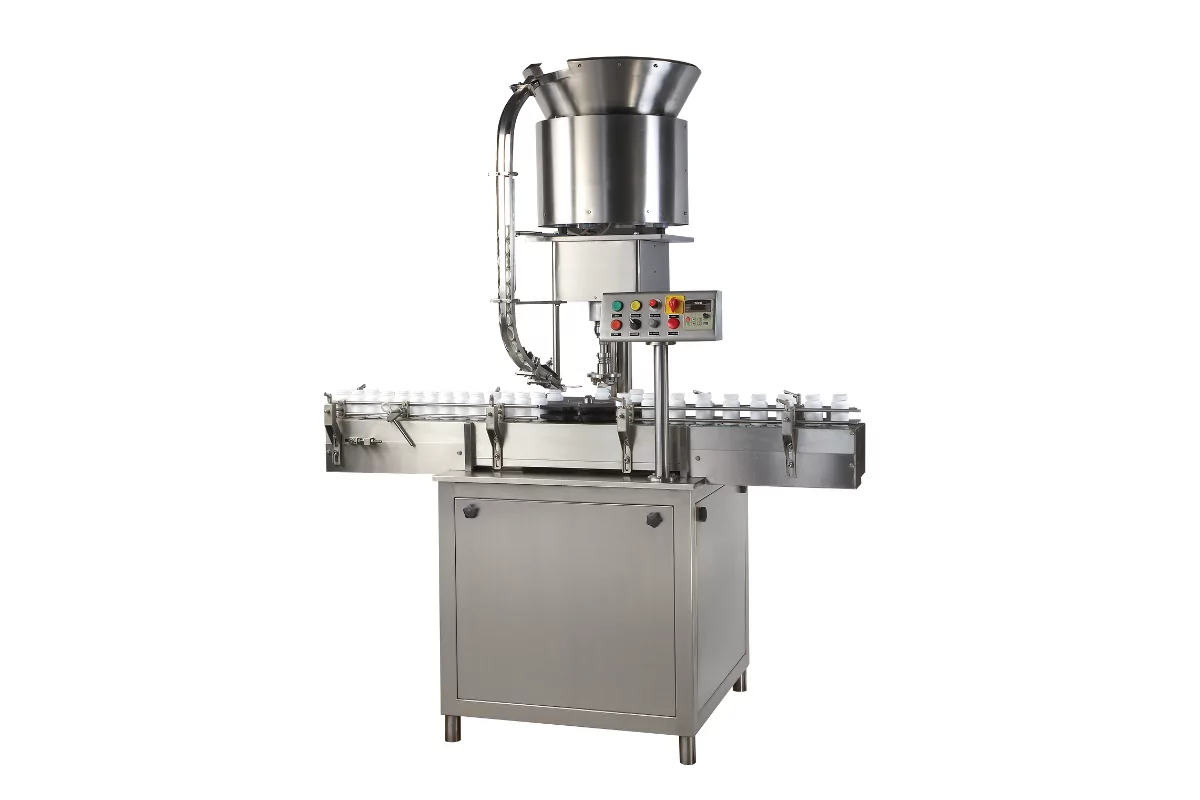

1 Head ROPP Cap Capping Machine
1 Head ROPP Cap Capping Machine - Image 2

1 Head ROPP Cap Capping Machine

The Automatic Eight Head Rotary Bottle Capping Machine Model CAPSEAL- 160R for ROPP Cap. Machine is suitable for Round or other shape of Glass, Plastic, PET, LDPE, HDPE Bottles with maximum speed of 150 Bottles per minute depending on Bottle Diameter, Bottle Height, Bottle Shape and Cap Size. Specially Machine construction in Stainless Steel finish including machine M.S. frame structure with Stainless Steel Cladding/Enclosures. The Capping Machine is ideal for application in Pharmaceutical, Food, Pesticides, Cosmetic & Other Industries.

The Machine is equipped with Orientation type Cap Feeder or Vibratory type Bowl Feeder depending on cap shape and size for continues feeding of Cap for online operation on any liquid or powder filling line. Machine suitable for various sizes of Bottles and ROPP Cap with the help of change parts. Capping Machine is suitable for application in Pharmaceutical and other Industries requiring higher production speed on automatic online operation.

Category:

Description

TECHNICAL SPECIFICATIONS:
  • Bottle Diameter : Up to 85mm*
  • Bottle Height : 150mm* Maximum
  • Aluminium ROPP Cap Size : Applicable for 20mm, 22mm, 25mm, 28mm or 32mm*
  • Electrical : 415VAC 3Phase and 220 VAC Single Phase Power Supply (50 Hz) with A.C. Drive
  • Power : 1.0 Hp
  • Conveyor Height : 815-850 mm
  • Overall Dimensions : 1500 mm (L) x 735 mm (W) x 1800mm (H)
  • Speed : Max. 40 Bottles per minute depending on Bottle and Cap Size
SPECIAL/OPTIONAL FEATURES :
  • No Bottle – No Cap System
  • No Cap – Machine Stop System
  • Machine construction in Stainless Steel Finish
  • Cap Feeder with Variable Speed System for feeding control of caps.
  • Hopper can be completely dismantle for easy cleaning
  • Various safety features including Clutch system to avoid Bottle
    Breakage or Jamming
  • Single Drive synchronizing operation of Conveyor and Star Wheel
  • Minimum Change over time
